Measure distance with Geofencing

Only available in expert mode.

This option allows you to check the use of a course map by comparing it with a geo-barrier map.

The option is only available when at least one map is loaded in the application.

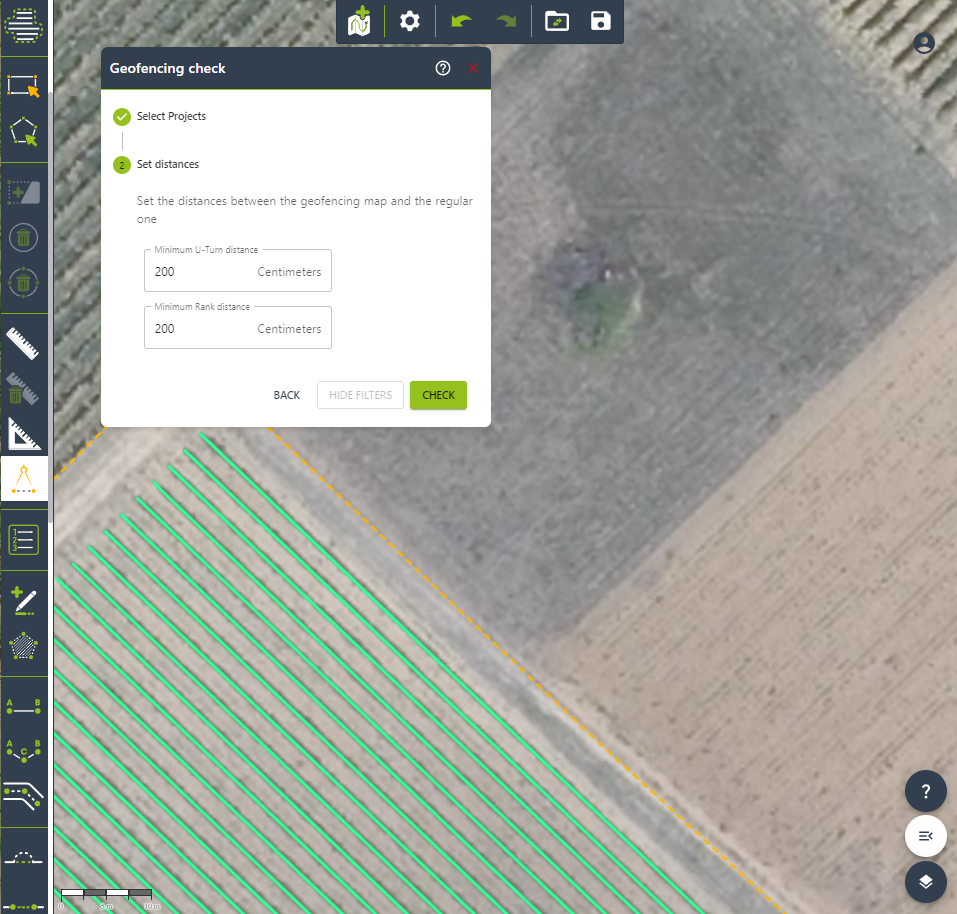

When the option is activated, a window opens allowing you to :

1. Select the maps (course map and geofencing map) to be compared.
2. Enter the verification distances:
   • The minimum U-turn distance to check that row ends are at a distance from the geofence greater than or equal to the value
   • The minimum distance with rows to check that segment sections are at all points at a distance from the geo-fence greater than or equal to the value.

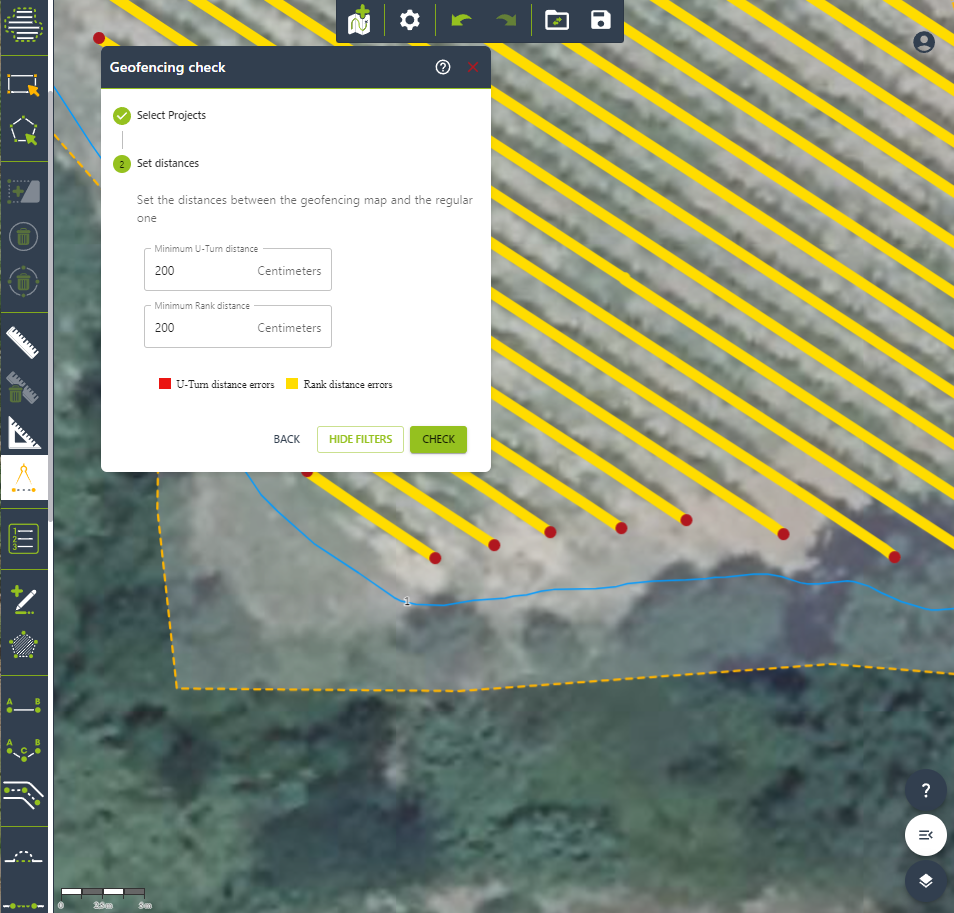

Once the option has been activated by clicking on VALIDATE, two filters appear to display problem areas:

• in red, row ends too close to the geo-fence
• In orange, row sections too close to the geo-fence

These two filters can be deleted by clicking on the CLEAR button, or by clicking on the delete filters option in the menu for maps.
